T serise

MY-TURN T25/36/42

Small Type Precision CNC Turret Lathe

  • 8-position servo turret provides fast positioning and shortened machining time.

  • Syntec PC-based, Fanuc, or Mitsubishi controllers are available.

  • High precision spindle accommodates collet chucks and 3-jaw chucks.

Machine Highlights

  • 8-position servo turret provides fast positioning and shortened machining time.

  • Combined turret and gang-type tooling system.

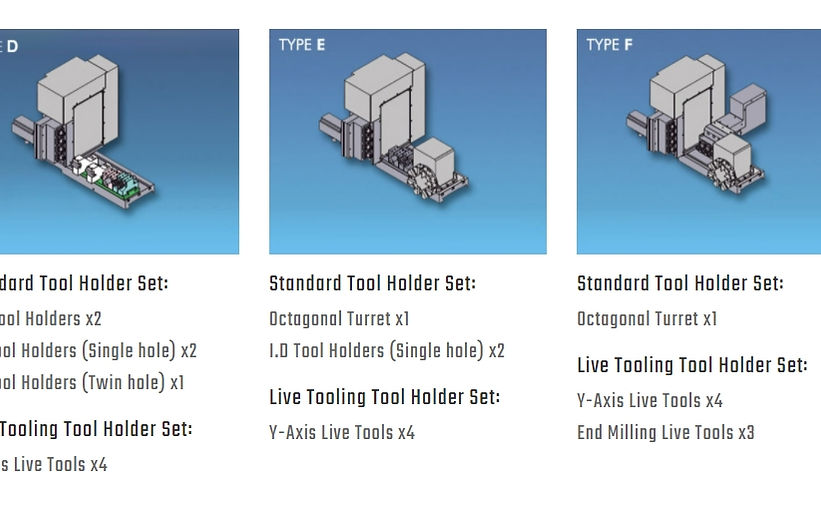

  • Various tooling configurations to meet your specific needs.

  • High precision spindle accommodates collet chucks and 3-jaw chucks.

  • C-axis functionality on spindle allows for milling, drilling, and tapping.

  • High/low pressure coolant pump for fine surface finishing and deep hole drilling.

  • Extra large 340mm travel on X-axis for excellent machining capabilities.

  • Oversized box ways on X and Z-axis for maximum stability.

  • Syntec PC-based, Fanuc, or Mitsubishi controllers are available.

  • Combined with C-axis functionality, Y-axis is capable of performing end milling, drilling, and tapping operations. Especially suitable for small and complex parts production.

  • By working with live tools, the face milling function can also drill eccentric holes or taps, saving on secondary workpiece set-up time.

Structural Design

All structural parts are manufactured from high quality stress relieved Meehanite cast iron, to minimize deformation.
Massive base construction ensures high rigidity and excellent vibration dampening.
Features box ways on X, Y, Z-axis. All surfaces are hardened and precision ground.

Structural Design

The New Cut- Off device decreases your total cycle time up to 28%. The cut off device enable you to do parallel machining for turning and cut off at the same time.

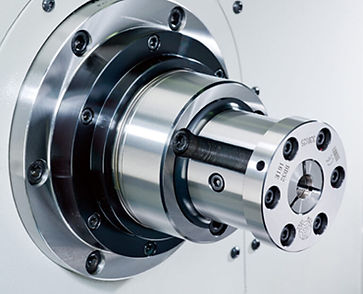

Spindle

Features a high precision spindle that accommodates both collet chucks and 3-jaw hydraulic chucks for versatile machining options. The spindle features a double row of roller bearings combined with angular contact ball bearings that resist radial and axial loads. With spindle speeds up to 6000rpm, fast and efficient machining is guaranteed, as well as very fine workpiece finishing.
